TW-600 OCELOT

TSM Module for embedded integration

The TW-600 Ocelot is a low-profile communications module built for sensor networks and data dissemination with easy integration into custom hardware platforms and network systems.

Integrate into other Equipment

With optimal size, weight, and power, the Ocelot module provides robust networking and flexible beyond line of sight communication capabilities — all in a cost effective, low-profile package.

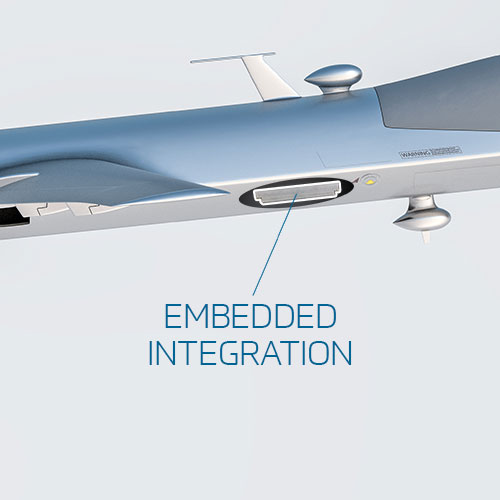

Ocelot embedded integration
Network Relay in Indago3

Network Relay

The Ocelot module opens up network possibilities as it acts as a network relay to send and receive IP data. The module is equipped with power, status, and control interfaces; audio, data, and software interfaces; and RF and GPS antenna connectors.

Custom Platforms

The Ocelot Integration Platform accessory converts pin header interfaces into common interfaces and controls for embedding communications and IP data flow in custom platforms.

The Ocelot module is an example of a commercially custom platform for embedding into another form-factor. TrellisWare offers custom networking solutions and will work with you to reach your desired form-factor. Contact us today at info@trellisware.com for more information.

Ocelot with module

PHOTO CREDITS: Indago Quad Rotor UAS, Lockheed Martin

Size 3.37″ (H) x 2.12″ (W) x 0.54″ (D)
Weight (R/T only) 3 oz
Frequency Range 1775–1815 MHz, 2200–2250 MHz
Occupied Bandwidth 20 MHz, Configurable to 4 MHz
Transmit Power 2 W
Input Power 3.0–4.2 V DC
Environmental MIL-STD-810G
IP Support IPv4, IPv6; Unicast, Multicast, Broadcast; TCP, UDP
Connectors Board Mount, Power and Control, Audio, Data Interfaces, U.FL RF Antenna, U.FL GPS Antenna
Data Rate 8 Mbps IP Throughput per Channel
Audio Encoding AMR 5.9 or MELPe, Up to 12 Channels
Audio Latency 3 Hop < 275 ms; 8 Hop < 400 ms
Net Entry Time < 1 Second
Waveform TSM
Routing Barrage Relay™ networking
Modulation Constant Envelope

Ocelot is a low-profile module ideal for integrating with other equipment or existing systems in a tactical mobile ad-hoc network.

  • Flexible module for unmanned systems, ISR, M2M, or security
  • Fixed or mobile tactical operations
  • Acts as a network relay to send and receive IP data
  • Fits into tight fitting spaces
  • Simultaneous voice, data, and PLI
  • Operates with other TSM products
