TW-650 TSM Shadow™ Module
Software Defined Radio (SDR)

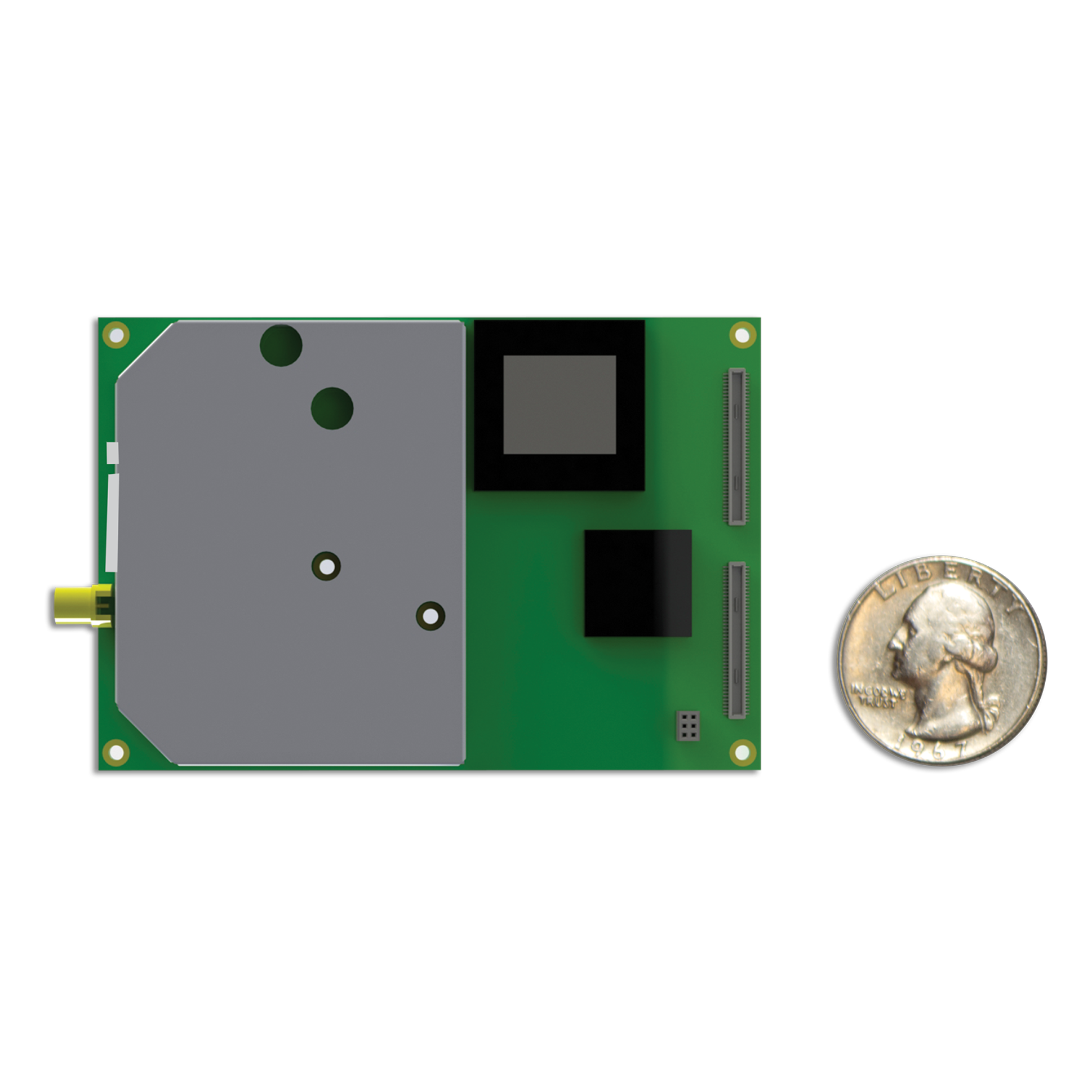

The TW-650 TSM Shadow Module is a software defined radio architected for embedment into a wide range of platforms for communications, network devices, and unmanned systems.
The TW-650 is a single-board radio, built for integration into custom platforms, drones, robotics, and existing systems. The radio module provides reliable connectivity for tactical mobile ad-hoc networking using TrellisWare’s TSM™ waveform. The TW-650 is ideal for applications where size, weight, and power consumption are critical.
Extensive Feature Set
The TW-650 provides a full feature set perfect for custom integration. It includes:
- A full software API for status and control of the radio through an IP interface, and a set of Web-apps hosted on the radio for end-user configuration and monitoring of the TSM network
- High density connectors offering flexibility in system interfaces
- A feature set with built-in AES security and video encoding
RF Spectrum Flexibility
The TW-650 interface module has so many possibilities:
- A single radio, not requiring any manual swap of RF modules
- A single antenna, ideal for small UAVs where MIMO is challenging to install
- Extended frequency coverage: UHF, L-band, and S-band
- Configurable bandwidths ranging from 1.2 to 40 MHz
- Audio, data, video, and positional information
Running TrellisWare’s TSM Release 6 waveform, the TW-650 is fully interoperable with the TrellisWare® family of radios, as well as other radios and devices that run the TSM-X™ waveform.
|Size||2.920″ (H) x 2.0″ (W) x 0.108″ (D)|
|Weight||1.12 oz (core board with shielding)|
|Frequency Range||L-UHF: 225–450 MHz, U-UHF: 698–970 MHz, L/S Bands: 1250–2600 MHz|
|Configurable Bandwidth||1.2, 4, 10, 20, 40 MHz|
|Transmit Power||Up to 2 W|
|Input Power||3.0–4.0 V DC, 9.8 W max|
|Connectors||Board Mount, Power and Control, PTT Audio, USB 2.0 Ports (USB-OTG, USB-H1), Serial UARTs, I2C, RF Antenna (SMP jack), GPS|
|Data Rate||Pt. to Pt., up to 16 Mbps (1-hop)|
|Audio Encoding||AMR 5.9, MELPe|
|Video Encoding||H.264, HDMI, NTSC, PAL|
|Security||Built in AES-256 COMSEC and TRANSEC|
|Waveform||TSM Release 6|
- Flexible module for tactical communications platforms, network devices, unmanned systems
- Fixed or mobile tactical operations
- Acts as a network relay to send and receive IP data
- Fits into tight fitting spaces
- Simultaneous voice, data, and PLI
- Operates with other TSM products
TrellisWare offers 24/7 support for technical issues and a resourceful online Customer Support Center. The Support Center includes current software updates, documentation, frequently asked questions, and information about TrellisWare training classes.
Current users of TrellisWare® products and development partners may register to access the Support Center at: https://support.trellisware.com
