TW-875
TSM Ghost

Low Profile, Small Form Factor Radio

The TW-875 TSM Ghost radio is highly portable with built-in battery that provides significant flexibility in deploying TSM™ networks.

SOF Warrior

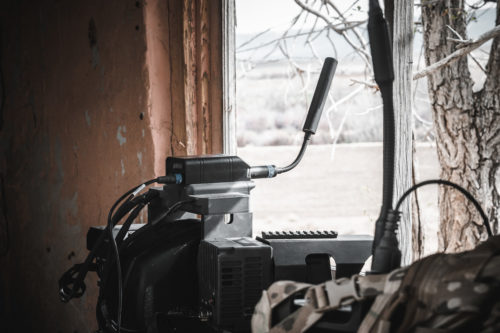

Low Profile Network Relay

The TSM network extends beyond dismounted users, where TSM Ghost radios provide access to a wide range of platforms and can be deployed as network relays. The radio also features GPS and RF antenna connectors, USB data connectors, external power, and a small LCD display.

Real-Time Intelligence

TSM Ghost radios deliver cost-effective situational awareness and real-time intelligence through its continuous position location information (PLI) reporting and IP data capabilities. This fully operational TSM Ghost provides the capability to provide PLI of assets and coalition partners without requiring a larger, full-featured TSM radio.

TrellisWare's Single Board Radio

Size 4.06″ (H) x 2.50″ (W) x 1.46″ (D)
Weight (R/T only) 14.4 oz
Frequency Range L-UHF: 225–450 MHz
U-UHF: 698–970 MHz,
L/S Bands: 1250–2600 MHz
Configurable
Bandwidth
1.2, 4, 10, 20, 40 MHz
Transmit Power 100 mW, 250 mW, 500 mW, 1 W, 2 W
Environmental MIL-STD-810G
Operating
Temperature Range
-20C to +55C
Water Resistant IP68
Connectors USB On-the-Go, RF TNC, GPS SMA
Power Input 5 V to 20 V
Data Rate Pt. to Pt., up to 16 Mbps (1 hop)
Waveform TSM Release 6


  • Leave behind networking relay
  • Tactical tracking
  • Simultaneous voice, data, and PLI
  • Operates with other TSM products
